超音速プラズマシステム
(Supersonic Plasma System)

実験室で超音速流およびプラズマを再現するために,Fig.1に示すような超音速プラズマシステムを構築しました.この実験系は,2台の真空ポンプ,計測室チャンバ,放電回路などから構成されています.

Fig2に示すように,真空ポンプで計測室チャンバ内を低圧状態にし,そこへラバルノズルを通して大気を導入することで超音速噴流を作り出しています.ラバルノズル後縁に電極を設置して放電を行うことで,超音速流中にプラズマを生成し,計測を行っています.

To reproduce supersonic flow and plasma in the laboratory, a supersonic plasma system was constructed as shown in Fig. 1. The experimental system consists of two vacuum pumps, a measurement chamber, and a discharge circuit.

As shown in Fig. 2, a vacuum pump is used to create low pressure in the chamber, and air is introduced through a Laval nozzle to create a supersonic jet. Plasma is generated in the supersonic flow by an electrode placed at the trailing edge of the Laval nozzle and discharged to perform measurements.

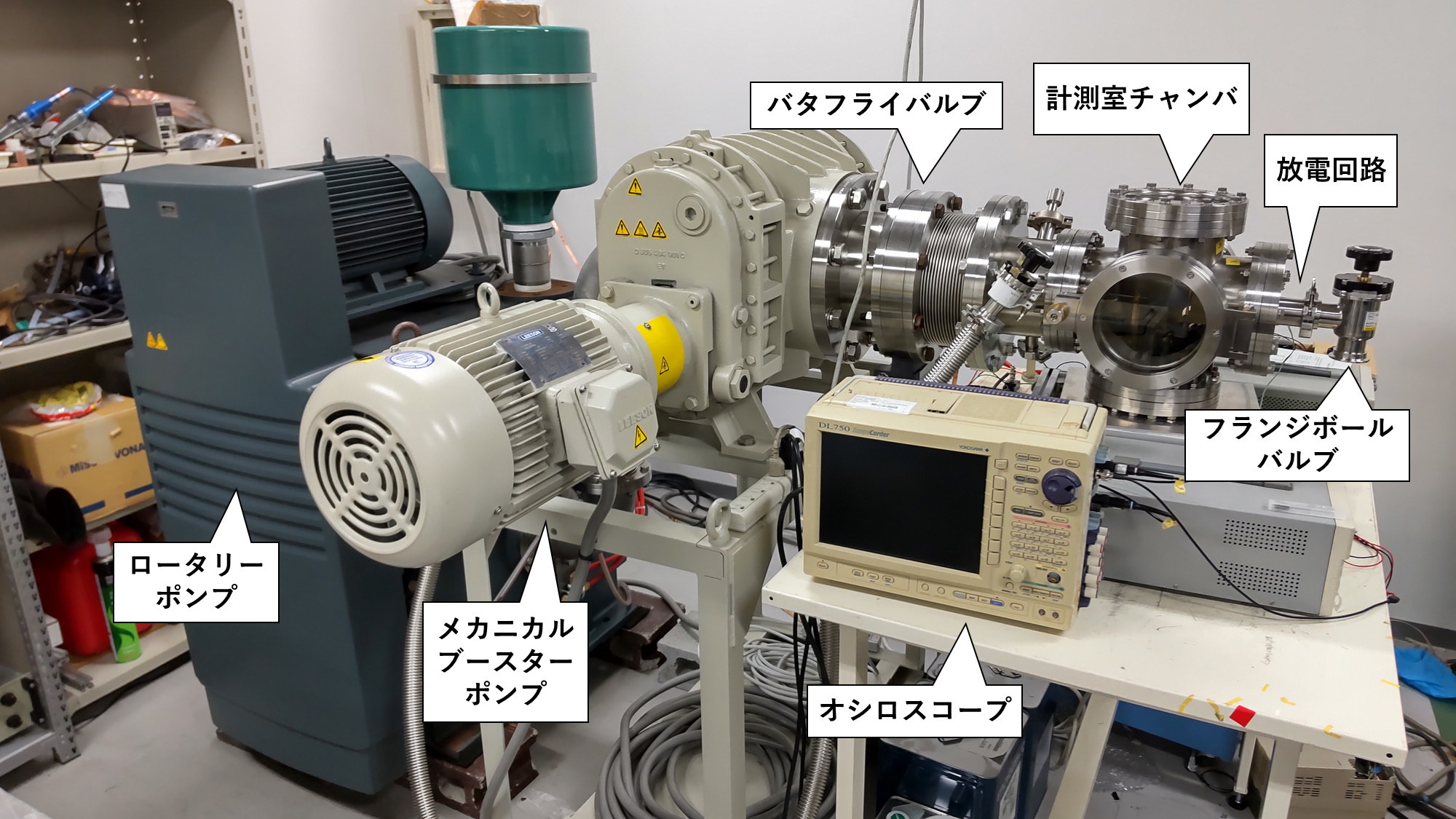

Air-breathing_Plasma_Jet_overviewFig.1 超音速プラズマシステム概観 (Supersonic Plasma System Overview)

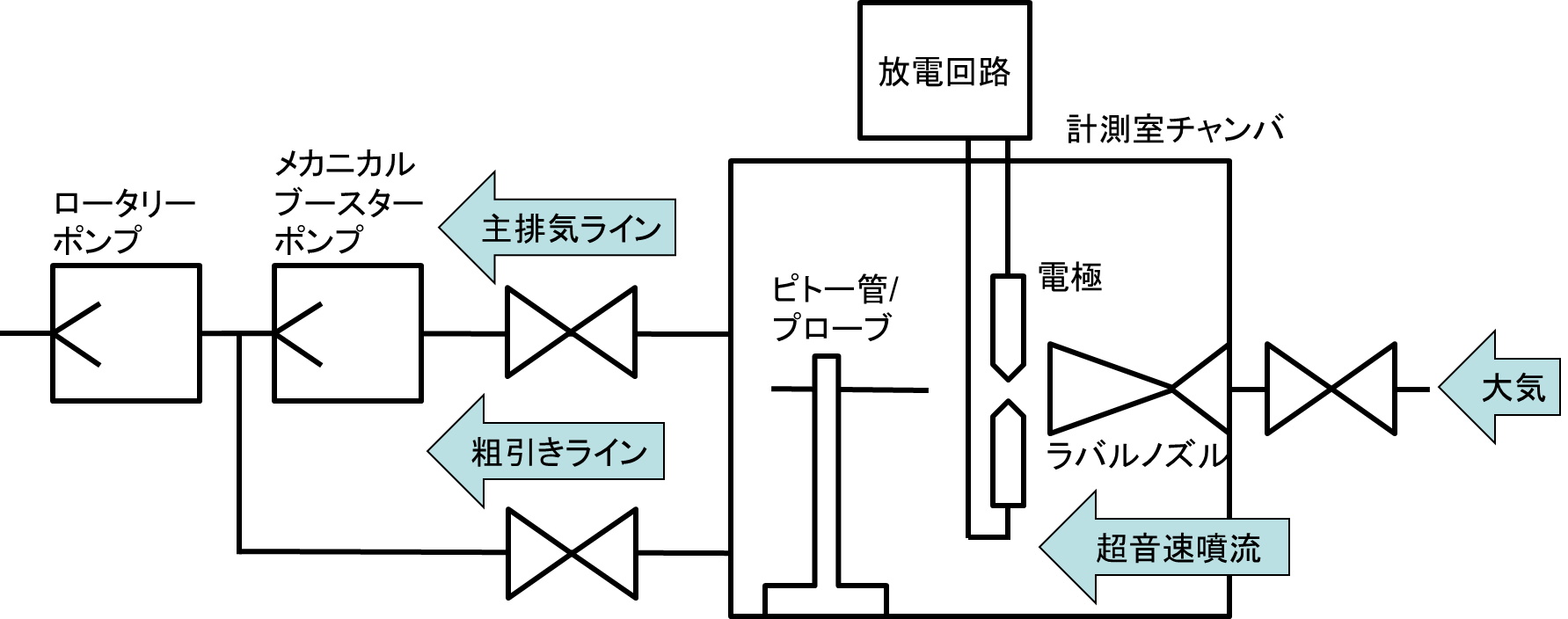

Air-breathing_Plasma_Jet_System_BlockFig.2 超音速プラズマシステムブロック図 (Supersonic Plasma System block diagram)
